Press more oil.
Sell better cake.
Double-chamber screw presses, seed cookers, filter presses, material handling and complete turnkey oil mills for mustard, groundnut, soybean, sunflower, canola and more.
See how a mill works, seed by seedHow an Optiflow works
Seed drops from the hopper along the feed screw into the conditioner, where a paddle agitator walks it through steam. The crammer feeder then drives it vertically down into the press. Oil drains through the cage bars; the cone choke sets cake thickness.
Pick a seed to see how much oil and cake an Optiflow 50 makes from it.
Compare Optiflow modelsProducts
Every machine an oilseed crushing plant needs, from seed cleaning to cake handling.

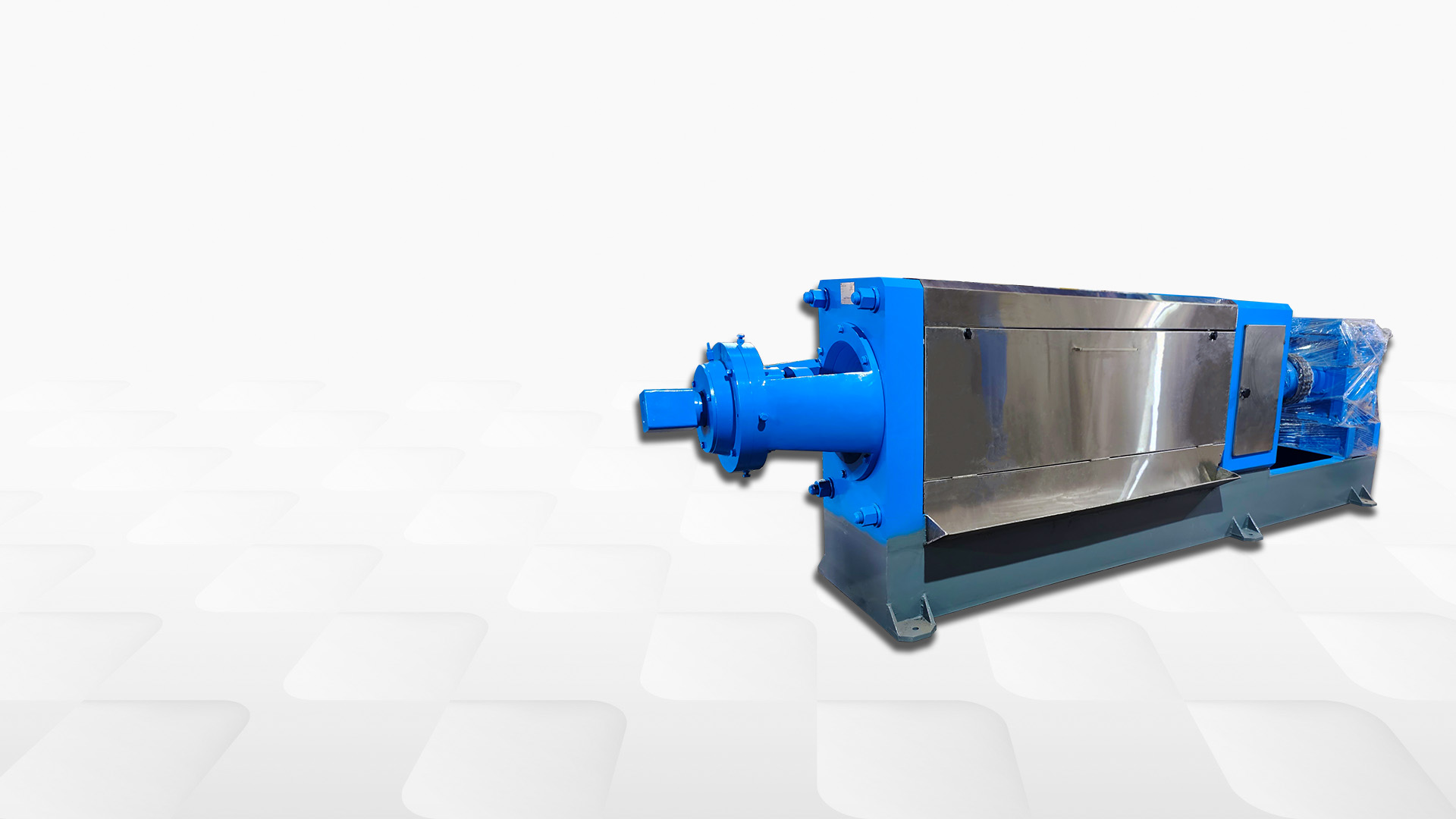

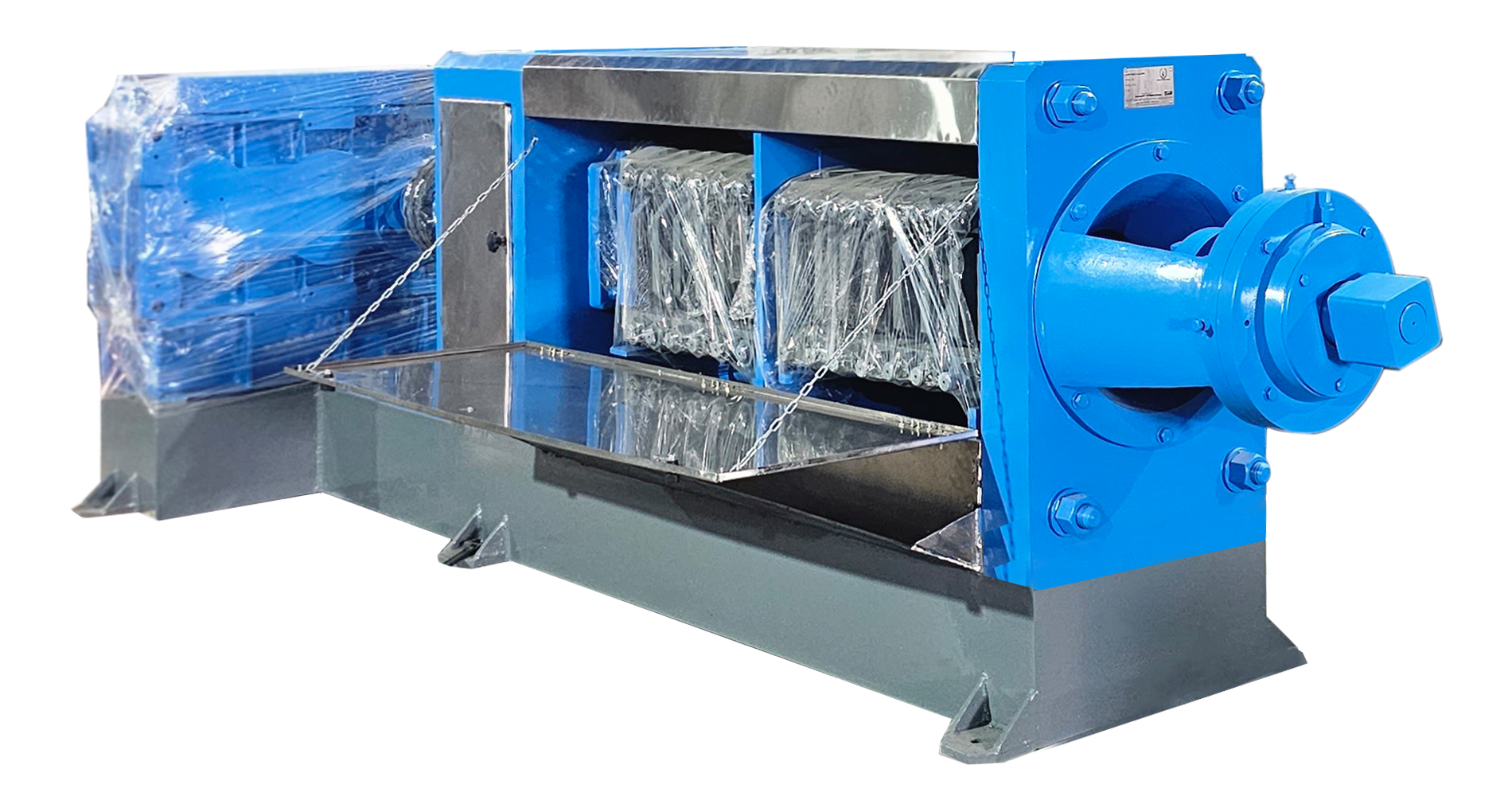

Oil expellers3Double-chamber screw presses for mustard, groundnut, soybean, sunflower, canola and other oilseeds, built for low residual oil and continuous duty.
Seed cookers1Seed conditioners with heavy-duty gearboxes and steam injection for even cooking of large batches.
Filter presses1Hydraulic filter presses with virgin polypropylene plates for clear oil and fast cycles.

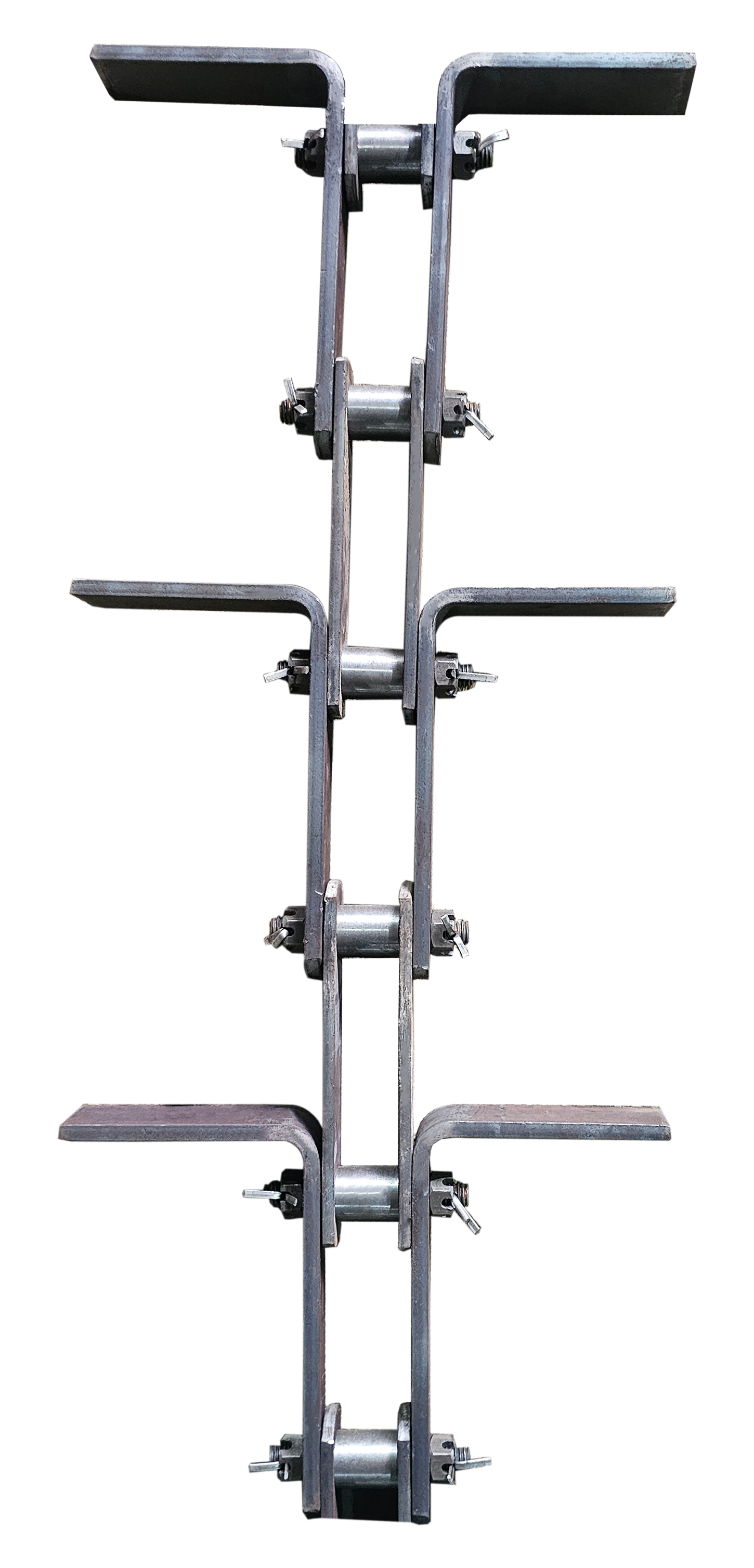

Material handling4Screw conveyors, Redler chain conveyors, roller chains and bucket elevators for seed, cake and bulk materials.
Expeller accessories2Crammer feeders and cake breakers that keep presses fed and cake easy to convey and pack.

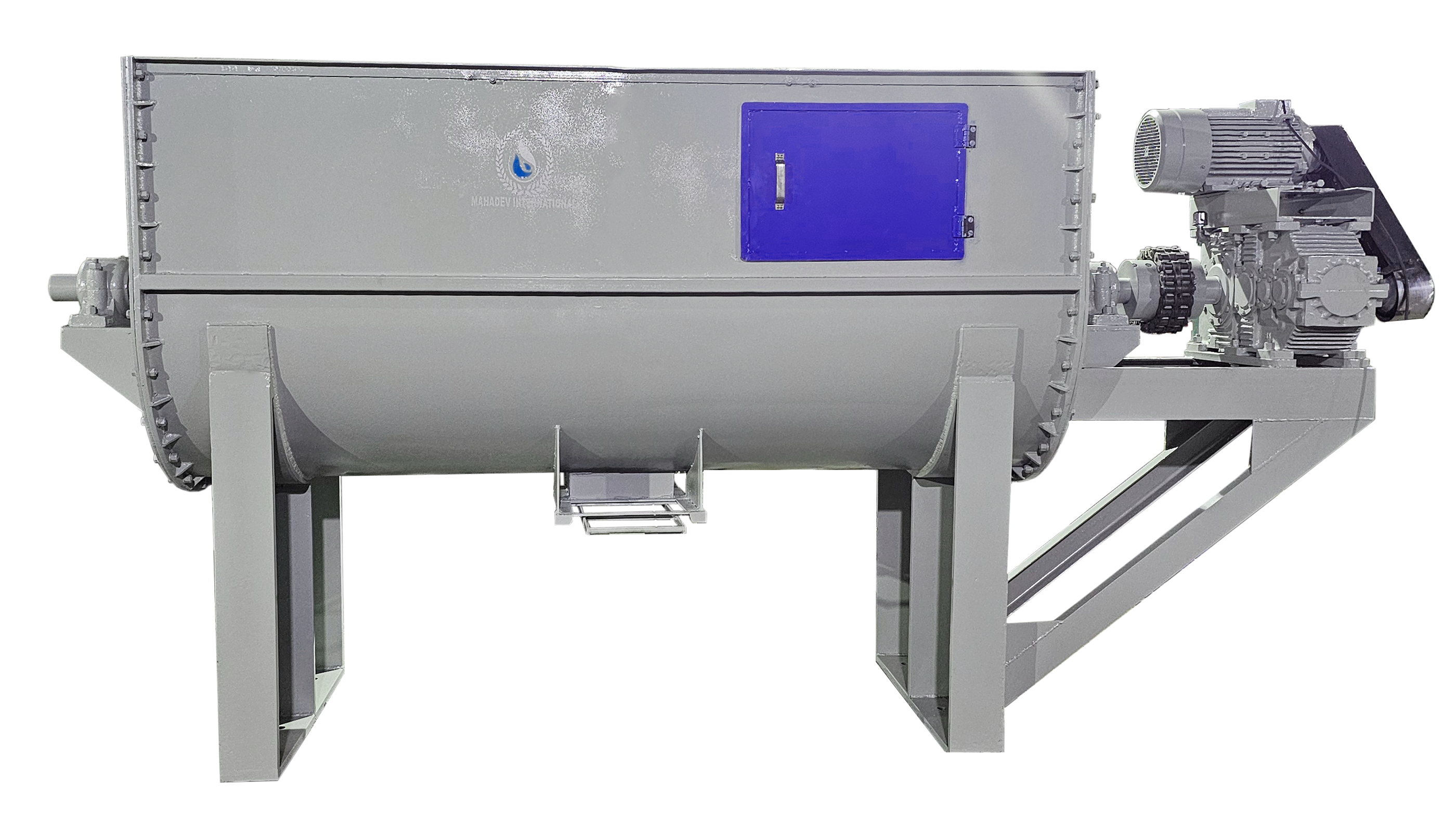

Mixers and blenders1High-capacity paddle and ribbon mixers for consistent, homogeneous output.
Extruders1Extruders for conditioning efficiency, high throughput and long service life.
Seed cleaning and steam8Seed cleaners and industrial boilers that prepare seed and supply steam to the cooker.
Industrial shredders1Multi-purpose shredders with hard-faced blades, heavy fabrication and high-torque drives.
Oil filtration and polishing3Pressure leaf filters, polish filters and vibro separators that clarify oil after the press.

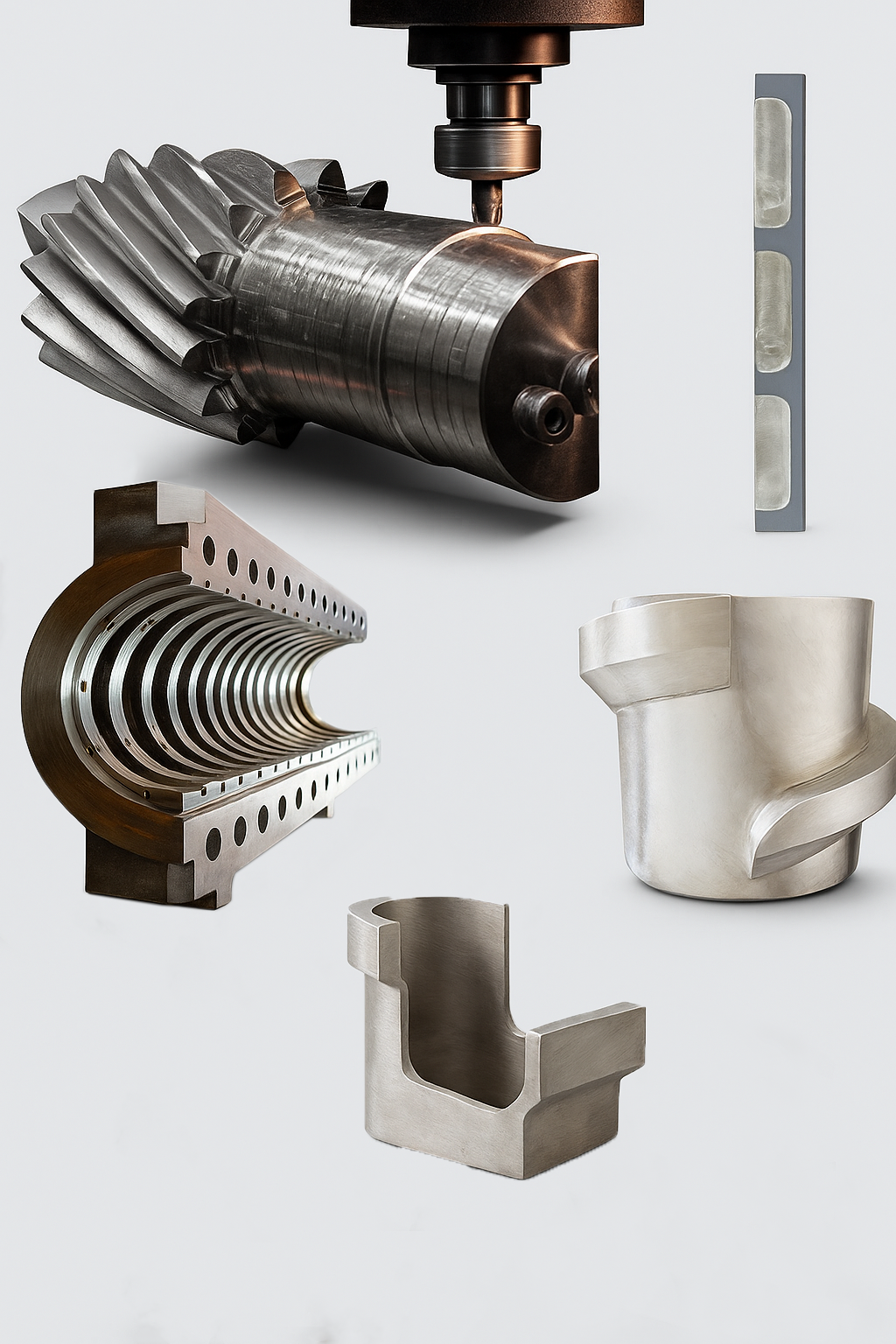

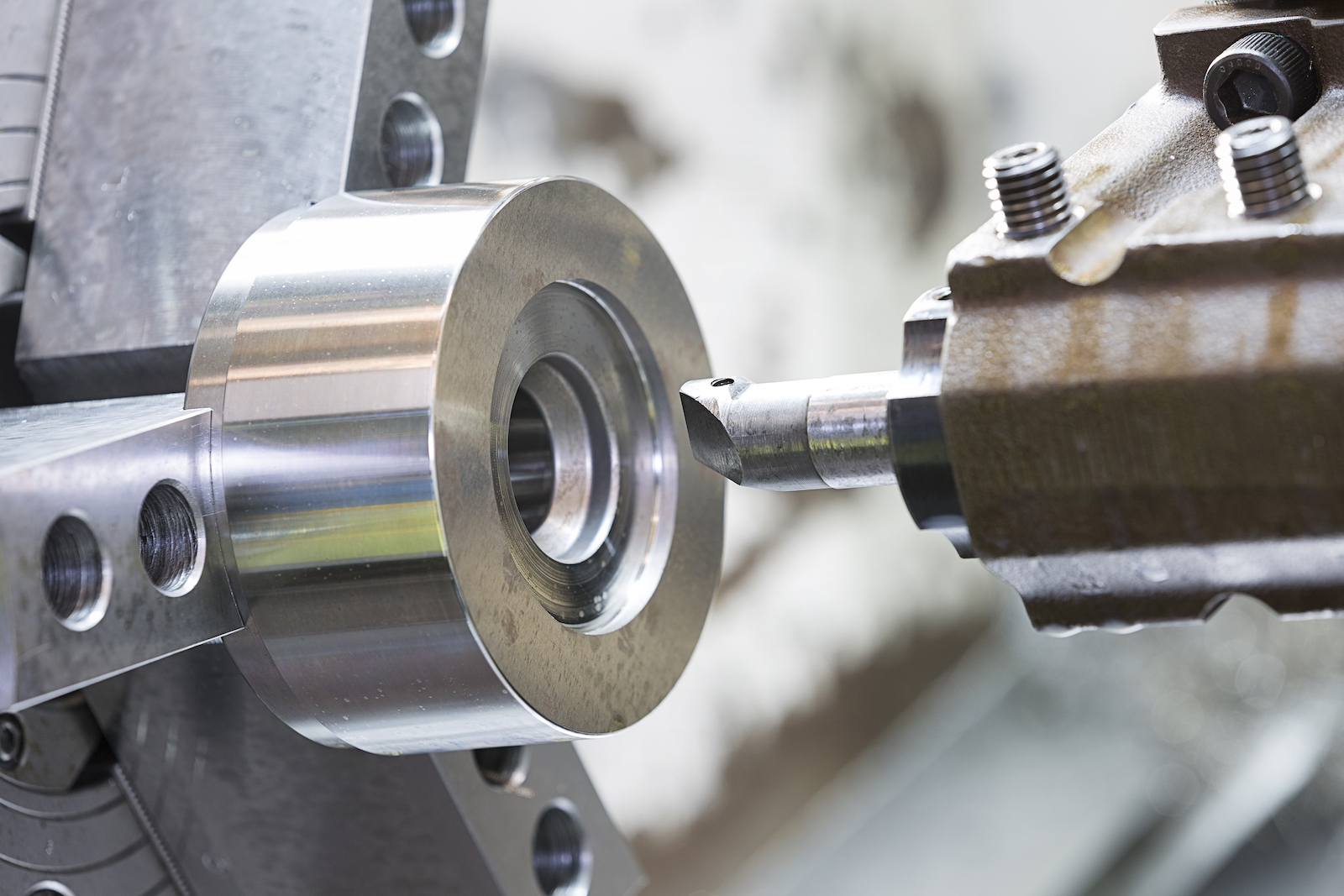

Spare parts2Hard-faced worms, cage bars, cone rings, gears and CNC-machined parts for major expeller brands.
Inside the Optiflow
Switch between the drawing, the exploded view and a real machine. Wear parts carry a spare-part link.
From seed to oil
A press alone does not make a mill. Each step links to the machine that does it.
Seed cleaners remove impurities that wear worms and cage bars.
Seed cleaner

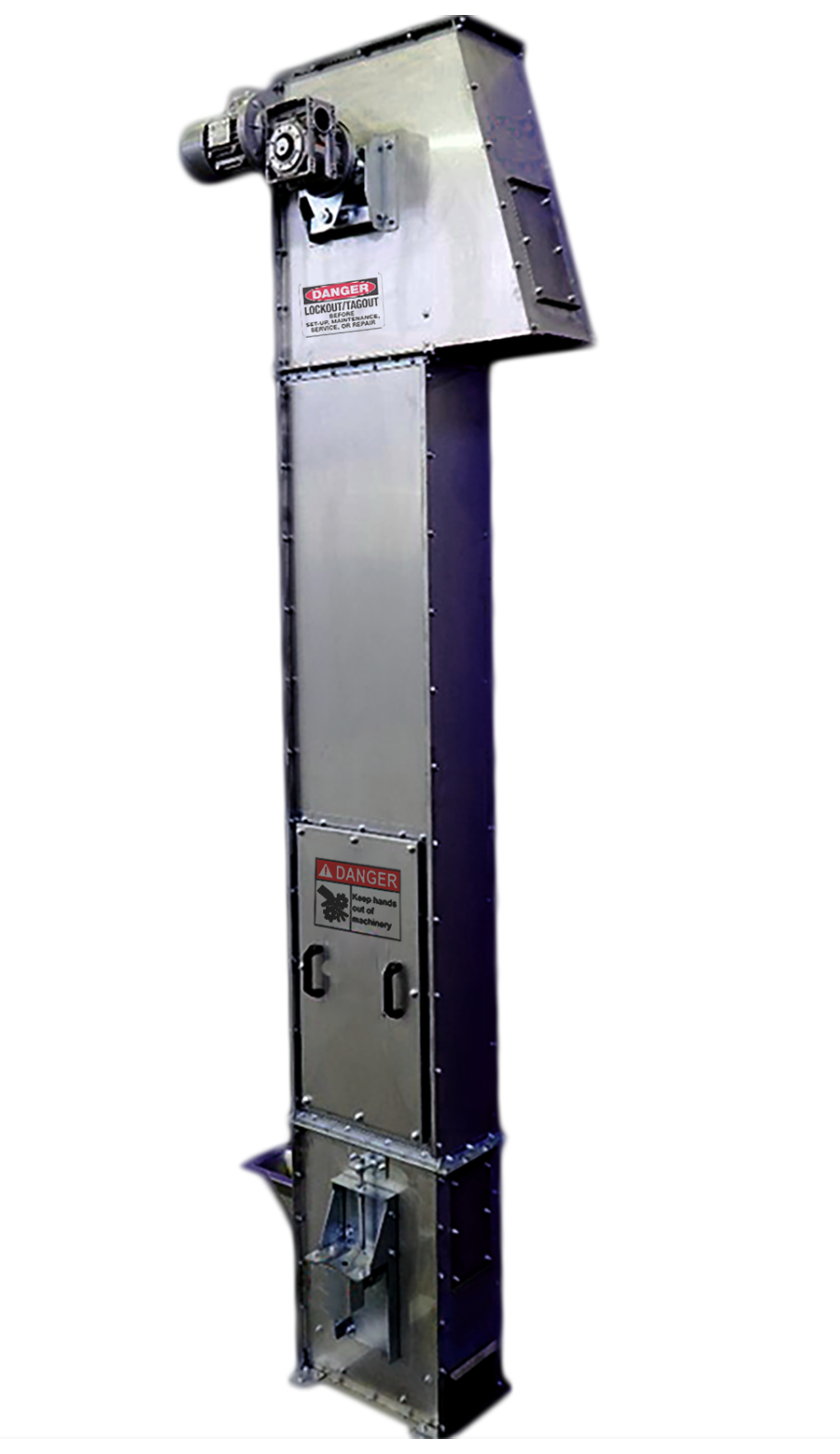

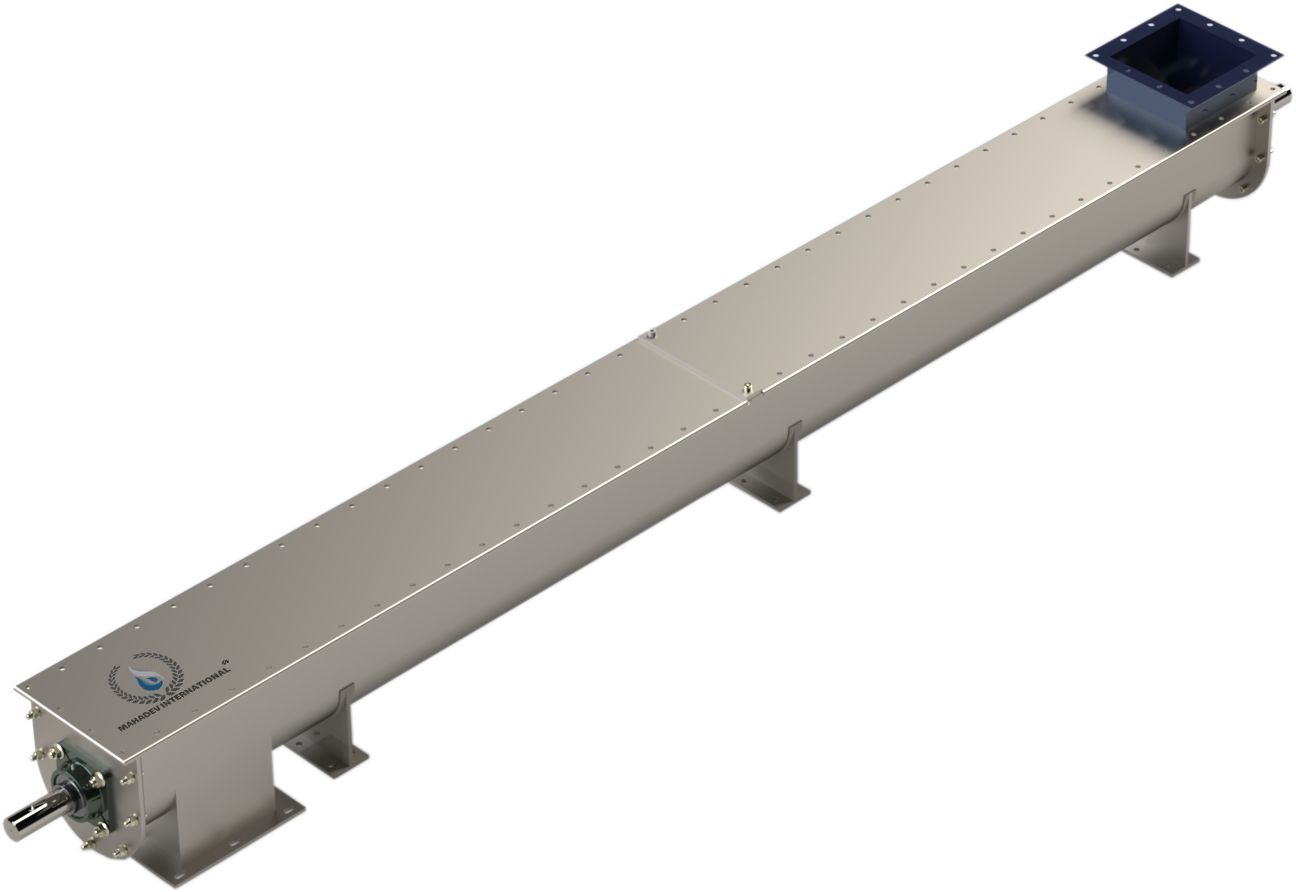

Bucket elevators, screw and Redler chain conveyors move seed and cake.

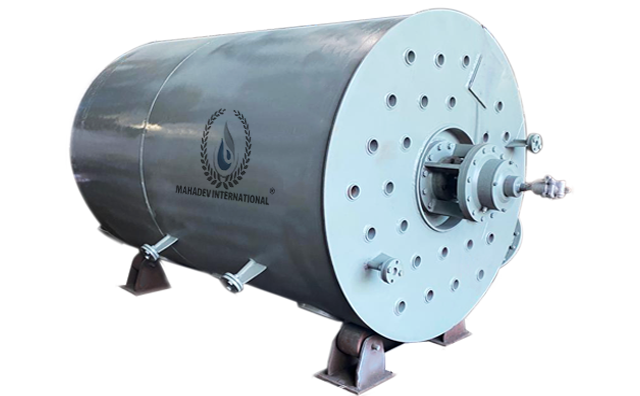

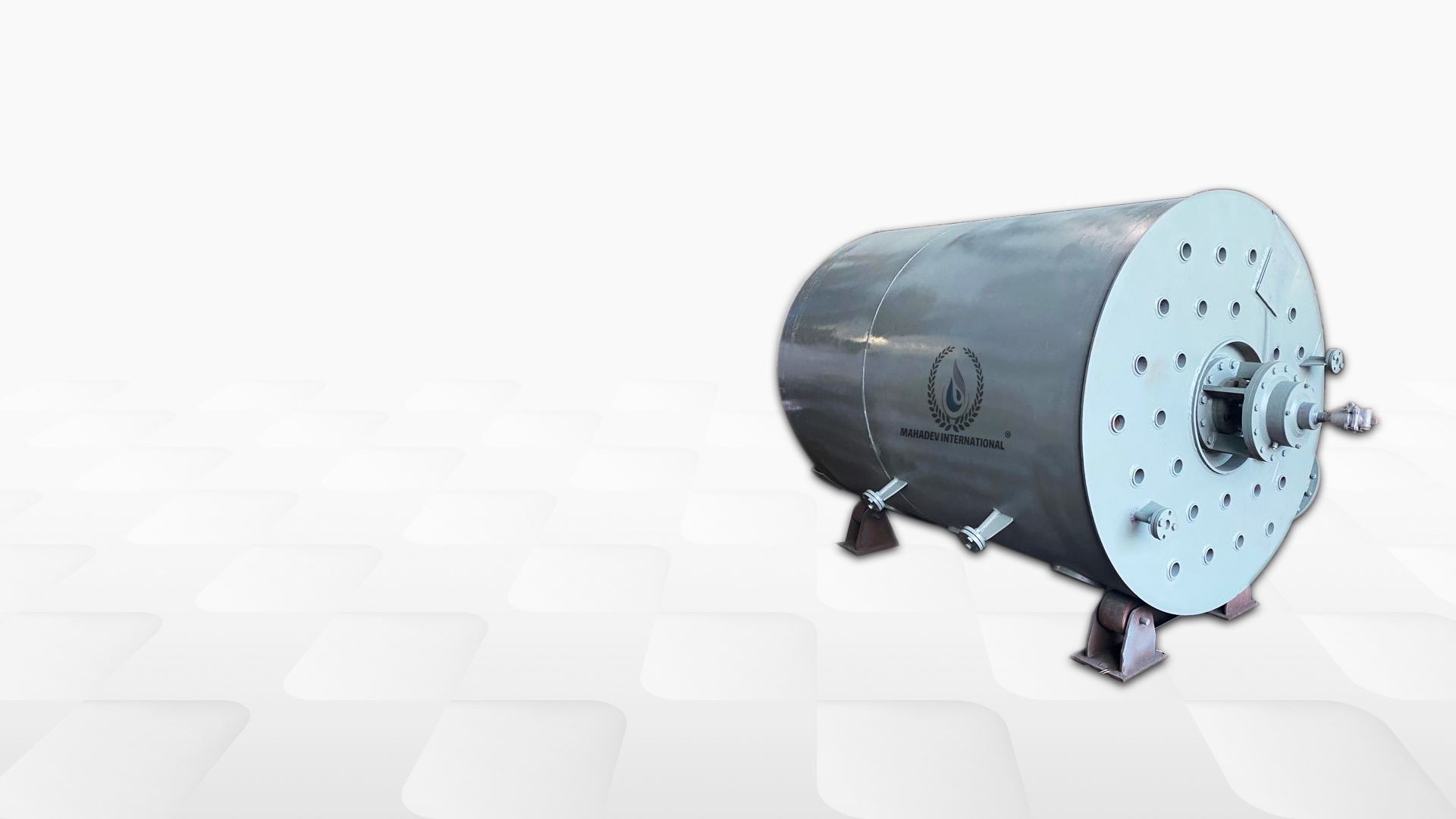

Material handlingThe seed cooker brings seed to pressing temperature with steam.
Oilseed cookerOptiflow double-chamber presses split seed into oil and cake.

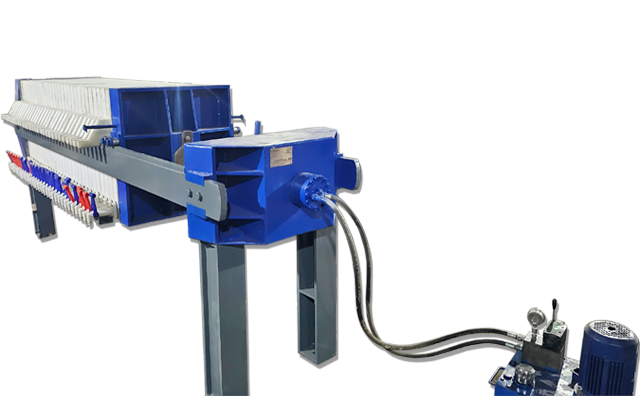

MFP filter presses clarify the oil.
Filter press
Cake breakers cool and break cake for conveying and bagging.

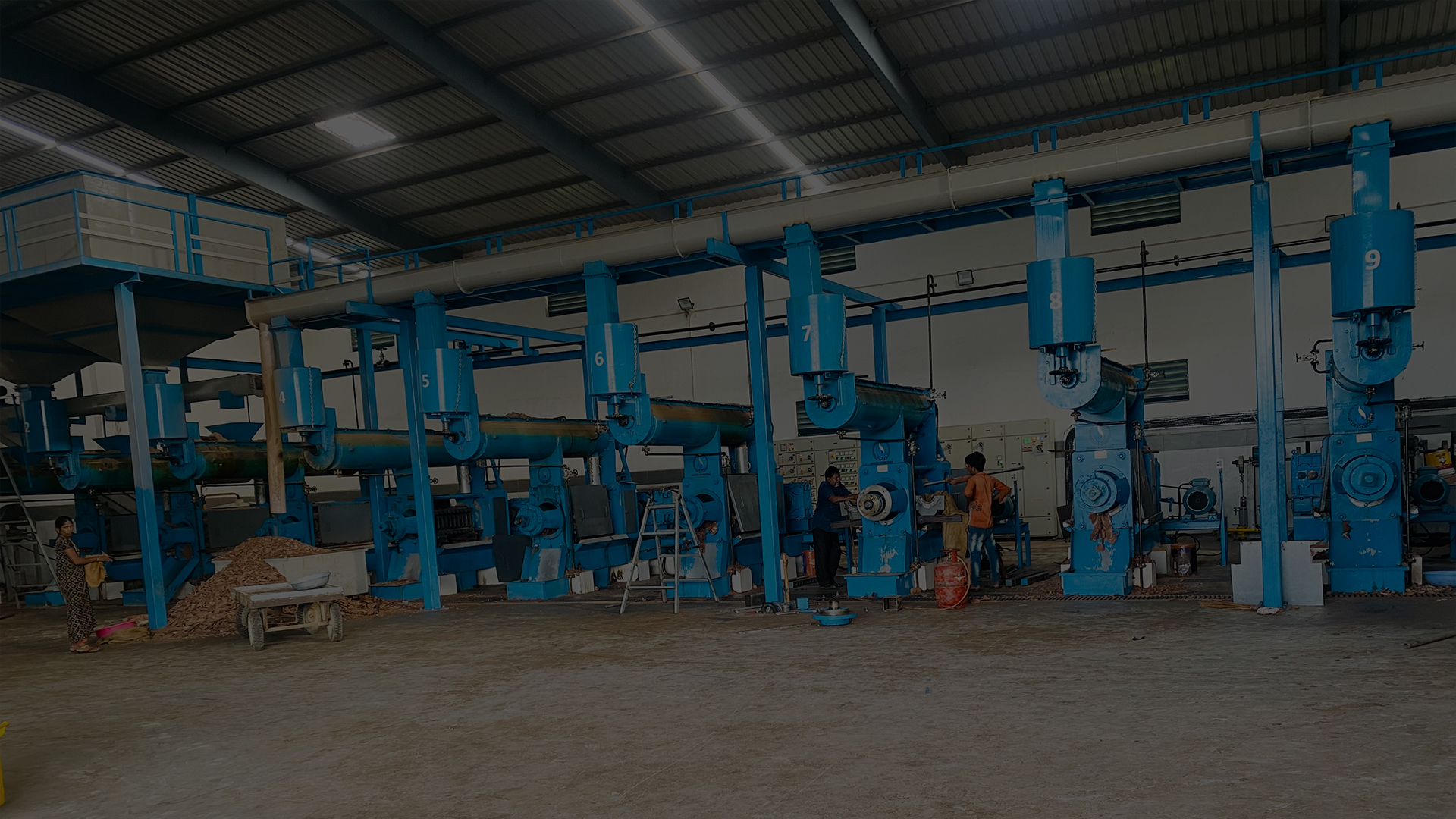

Cake breakerTurnkey solutions

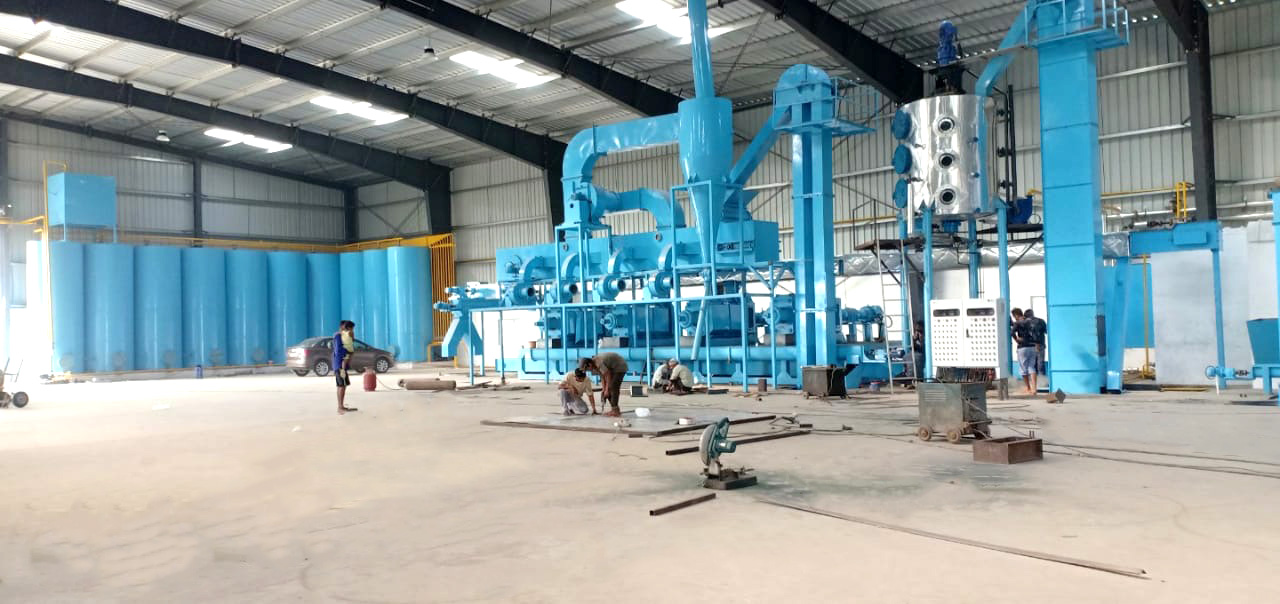

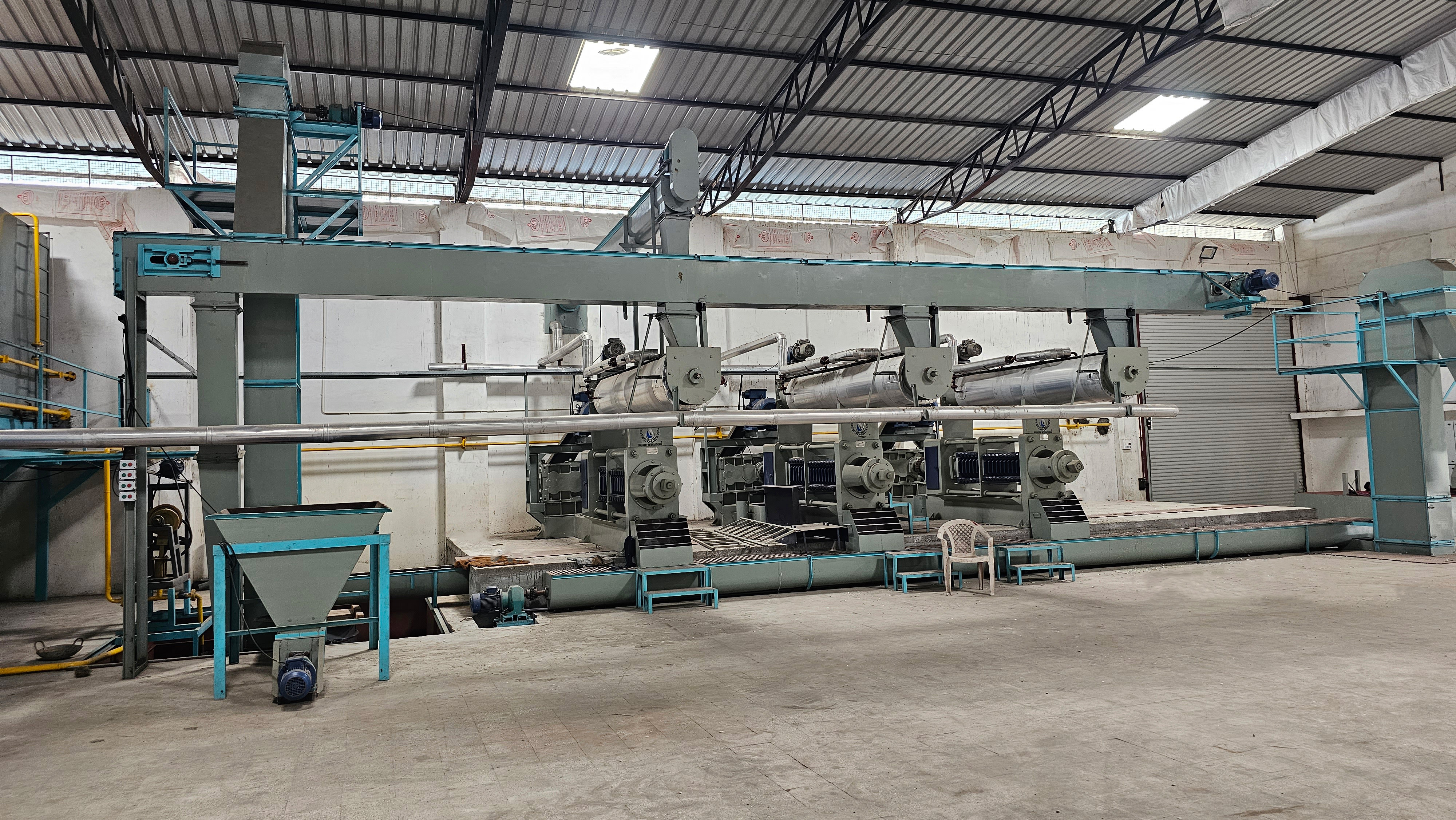

From initial planning to installation and commissioning, complete turnkey oil extraction plants tailored to your seed and capacity.

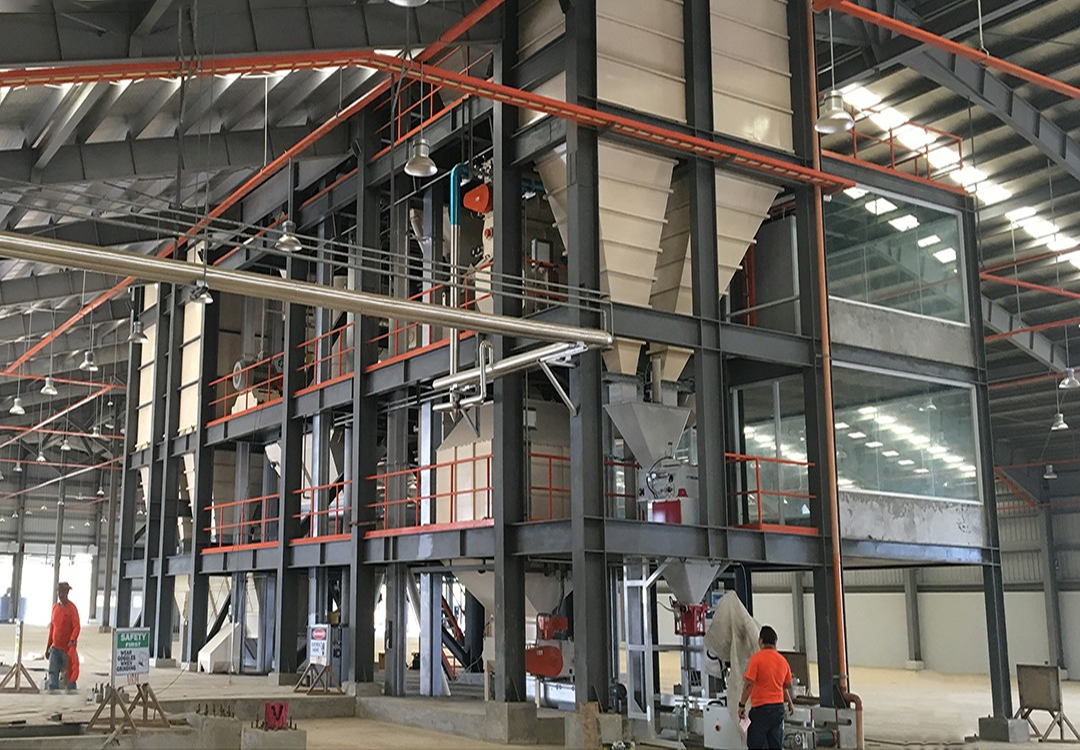

Feed plants for poultry, cattle and aquafeed with consistent quality and scalable output: automated, rugged and energy-efficient.

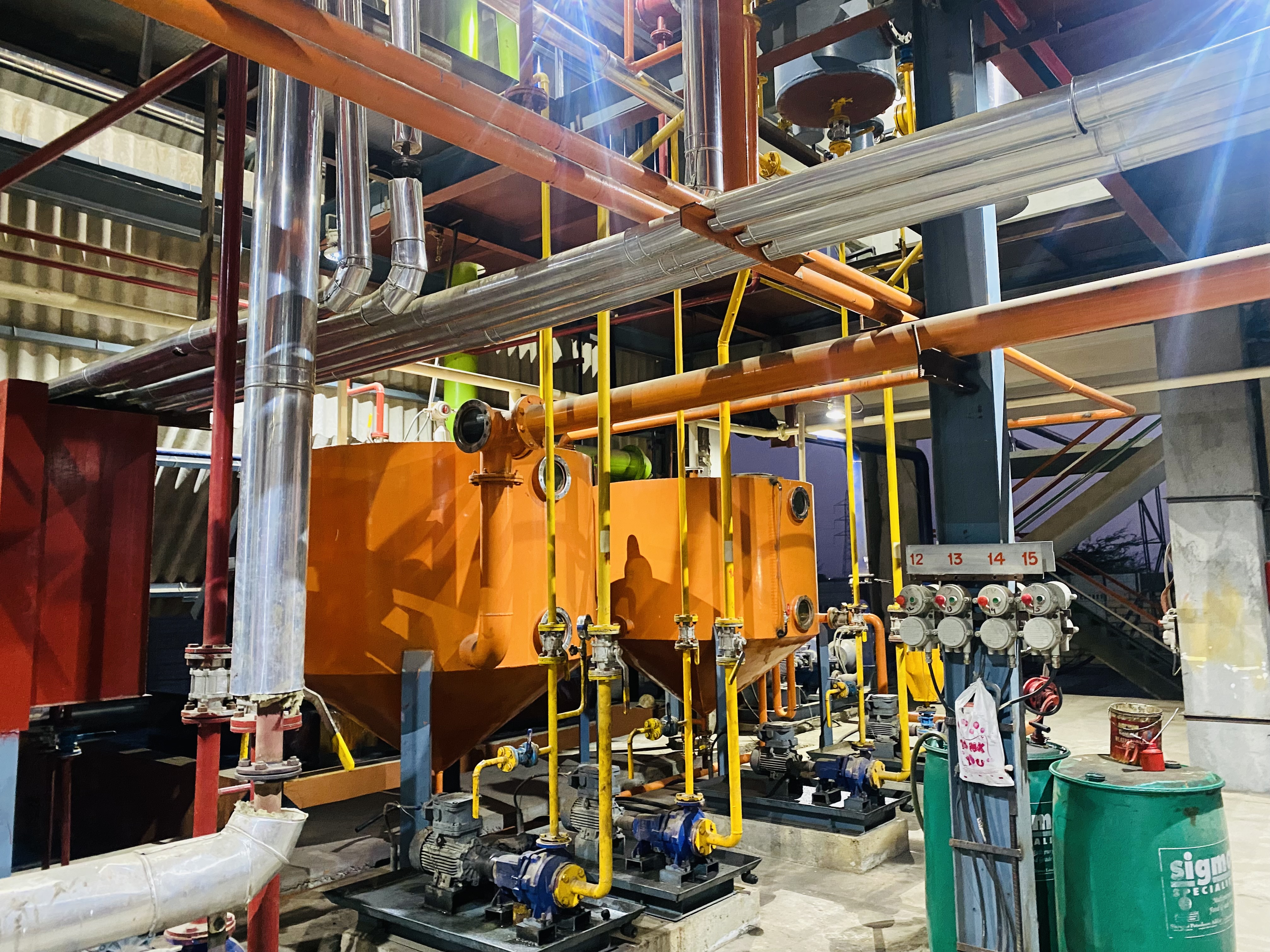

End-to-end solvent extraction plants from concept to commissioning, with a strong focus on efficiency, safety and long-term performance.
Process lines
Pick a seed for its full machine line, drawn step by step and explained in plain words.
Mustard
CleanWarmPressOil + meal2 presses, one after the otherSee the line
Groundnut
CleanWarmPressOil + meal2 line optionsSee the line
Soybean
CleanExtrudePressOil + mealOne pressSee the line
Canola
CleanWarmPressOil + meal2 presses side by sideSee the line
Sunflower
CleanWarmPressRefineOil + meal3 line optionsSee the lineOur work
Yield calculator
Pick a model and a seed. The figures use a mass balance and example prices you can change.
| Oil sales | ₹607,000 |
| Cake sales | ₹214,000 |
| Seed cost | −₹713,000 |
| Gross margin per day, before power and labour | ₹107,000 |
| Per month · 25 working days | ₹2,684,000 |
Worked out from the three prices on the left, which are examples. Put your own in before you trust this figure.
| Stage | Duty | Machine | Units |
|---|
Each machine is sized from the capacity we publish on its own page. Stages we do not publish a capacity for are sized to your layout.
Machine list, layout and power load for your numbers.

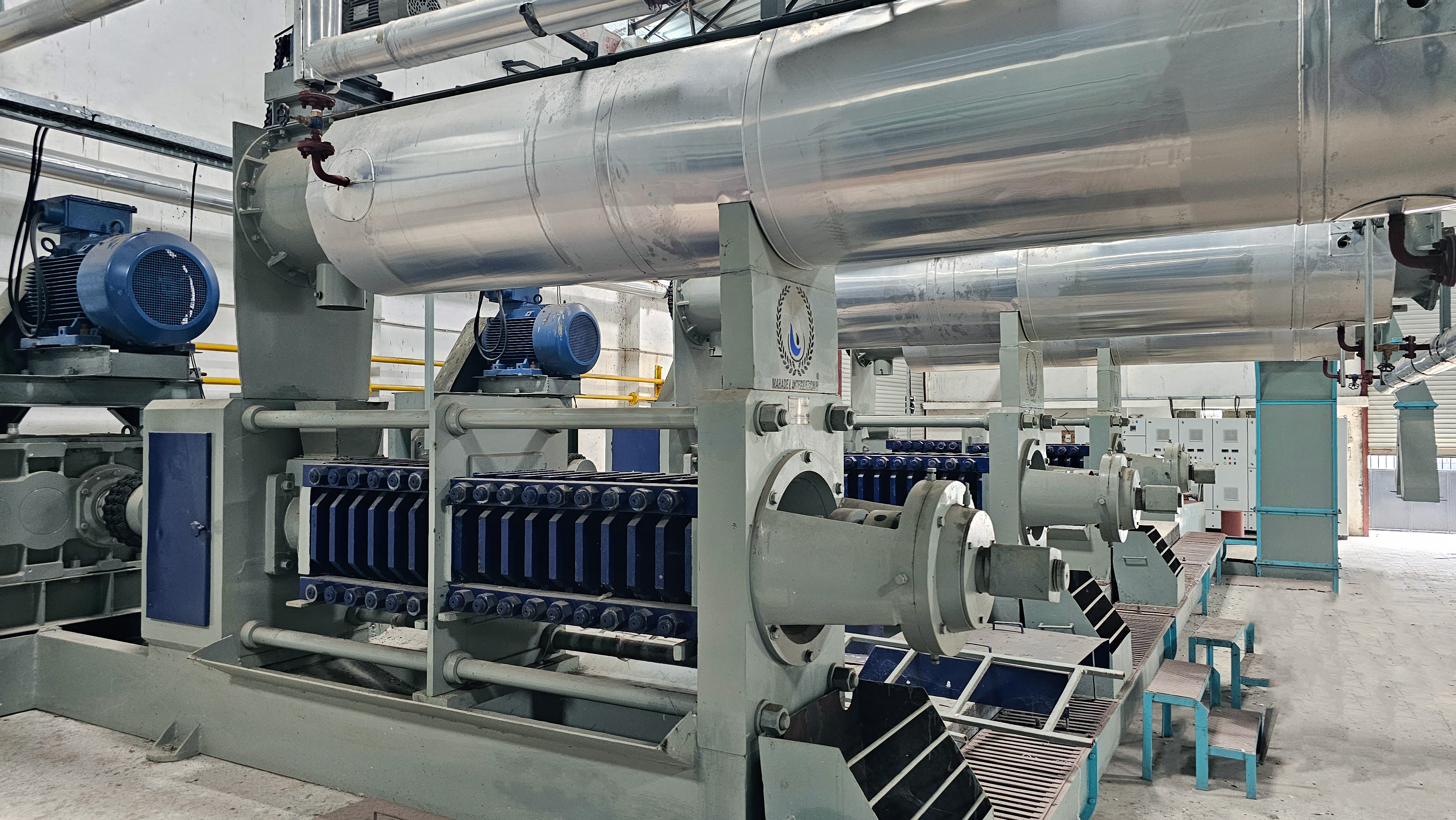

From our installations
Unedited clips from plants running Mahadev equipment.
Spare parts
Enquiry
Three short steps. Our team replies on WhatsApp, by phone or by email.
Monday to Saturday, 9:30 am – 6:30 pm IST
Demo mode: the form endpoint is not set yet, so this enquiry was not sent. Add the Apps Script URL to src/data/site.mjs.
Questions buyers ask
Optiflow 40 crushes 10–11 TPD as a final press or 13–14 TPD as a pre-press. Optiflow 50 crushes 11–12 TPD final or 14–15 TPD pre-press. Ask us for Optiflow 30, 45 and 60 figures and for larger lines.
Our Optiflow 40 and 50 specifications give 6–7% oil in the meal. Seed quality, moisture and cooking all affect it, which is why we pair our presses with our oilseed cookers.
Mustard, groundnut, soybean, sunflower, canola, sesame and cottonseed, among others. Our cookers also condition seeds such as macadamia.
Yes. Our custom-engineered spares fit all major OEM brands: worm screws and shafts, hard-faced press cage bars, cone rings and cone points, gears and CNC-machined parts.
Yes. We plan, supply, install and commission turnkey oil mills, animal feed plants and solvent extraction plants.
